DP-10 series
Lightweight and Compact!
Safe Design with Intrinsically Explosion-proof Specification.
An air-powered diaphragm pump that can transport a wide range of liquids, from highly flammable liquids to liquids containing abrasive elements.
Fully self-suction type that can pump out fluid efficiently, with no pump-priming required.
There are no sliding parts in wetted parts, eliminating the risk of liquid leakage due to seal friction. The DP-10 series has a nominal diameter of 3/8" (10 mm) and a maximum flow rate of approximately 20 L/min. The maximum size solid is 1 mm or less.
■ Main Applications
Removal of Fuel (Gasoline and diesel oil)/Application of Adhesives/Mounting on Equipment/Recovery of Floating Oil
Features
Specifications
| Body Material | A: Aluminum (ADC12) |
S: Stainless Steel (SCS14) |
P: GF Polypropylene (PP-GF) |
||
| Diaphragm Material | |||||
| C: Neoprene (CR) |

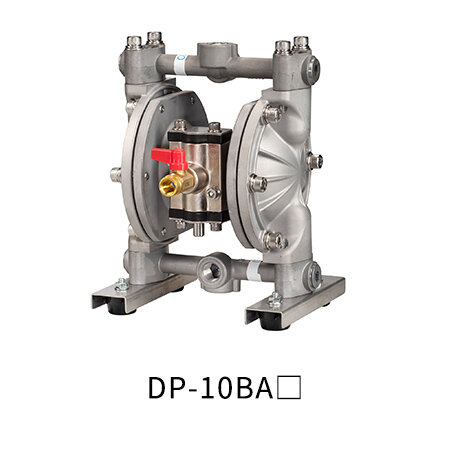

DP-10BAC (851743) |

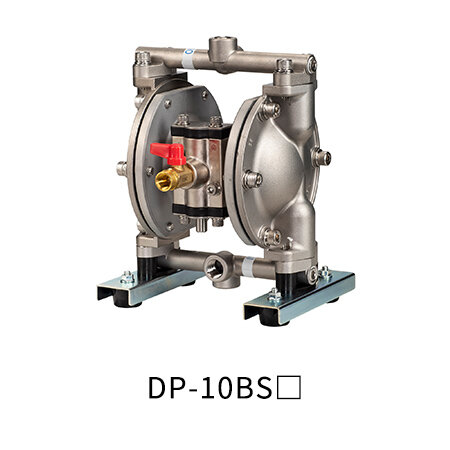

DP-10BSC (851746) |

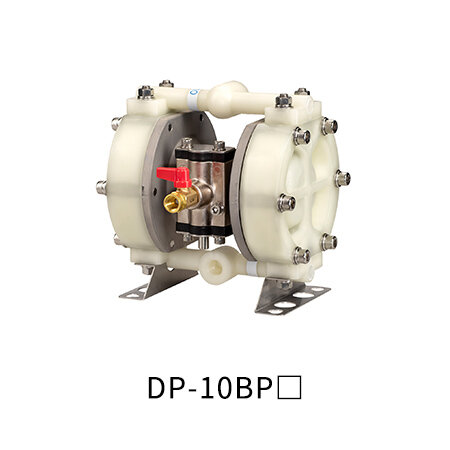

DP-10BPC (851745) |
||
| N: Buna N (NBR) |
DP-10BAN (851742) |
DP-10BSN (851747) |
DP-10BPN (852280) |
||
| T:PTFE (TPEE) |
DP-10BAT (851725) |
DP-10BST (851741) |
DP-10BPT (851744) |
||
| H: Hytrel(R) (TPEE) |
DP-10BAH (851750) |
DP-10BSH (851751) |
DP-10BPH (851752) |
||
| S: Santoprene(R) (TPO) |
DP-10BAS (852674) |
DP-10BSS (852675) |
DP-10BPS (852676) |
||
| H/T: Hytrel(R) (TPEE) |
DP-10BAH/T (851872) |
DP-10BSH/T (851873) |
DP-10BPH/T (851874) |
||
| Wetted Parts Material | |||||
| Ball Valve | DP-10B〇H/T: PTFE Others: Same as the diaphragm material | ||||
| Valve Seat | A5056 | SUS316 | DP-10BPC: CR DP-10BPN: NBR Others: PP-GF |
||
| Valve Stopper | PA *1 | SCS14 | PP-GF | ||
| Center Disk | A5056 | SUS316 | PP SUS304(Insert material) |
||
| Specifications | |||||
| Nominal Diameter | 3/8"(10 mm)Material Connection | ||||
| Material Connection |
Suction Port | Rc 3/8 | |||
| Discharge Port | Rc 3/8 | ||||
| Air Connection |
Supply Port | Rc 1/4 (W/air valve) | |||
| Exhaust Port | Rc 3/8 (W/silencer) | ||||
| Air Supply Pressure | 0.2～0.7 Mpa*2 | ||||
| Maximum Discharge Pressure | 0.7 MPa | ||||
| Water Discharge/Cycle | 50 mL *3 | ||||
| Maximum Flow Rate | 20 L/min *4 | 17 L/min *4 | |||
| Maximum Air Consumption | 300 L/min（ANR） | 250 L/min（ANR） | |||
| Maximum Size Solid | 1 mm以下 | ||||
| Suction Head Lift | 1m | ||||
| Net Weight | 3.5 kg | 5.2 kg | 3.0 kg | ||
*1 DP-10BA□ uses nylon (PA) as the material for the valve stopper. Note the corrosion resistance. Not suitable for MEK, etc.
*2 The maximum supply air pressure for a type with a resin-made pump body will depend on the liquid temperature.
*3 The water discharge is provided as a rough approximation only. The discharge will differ depending on factors such as the liquid to be transferred and the piping conditions.
*4 Maximum flow rate is a value indicating the pump capacity. We recommend selecting a size that allows some leeway, taking into account the impact on the life span of the diaphragm.
Dimentional drawing
Performance curve
Downloads
Parts List
Accessories

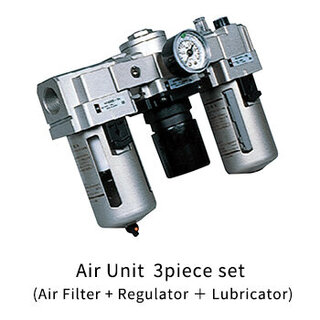

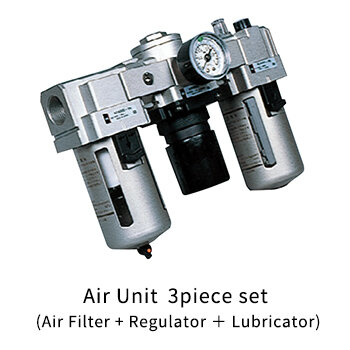

◆ Air Unit
3piece set (Air Filter + Regulator + Lubricator)
Removes moisture and debris from the supply air and protects the pump mechanism.
An air filter, regulator, and lubricator are included in one set due to the usage conditions.
*Prepare the connection materials separately according to the usage conditions.
*Use the dedicated bracket and air hose when attaching to the pump.
