Diaphragm Pumps Accessories
Filter/Regulators
| Model No. | Model | Fits Pump |
| 1500DP | AC20B-02G-B | NDP-5,DP-10,NDP-15 |
| 1500DP | AC25B-02G-B | NDP-20/P20 |
| 1500DP | AC30B-03G-B | NDP-25/P25,32 |
| 1500DP | AC40B-04G-B | NDP-40/H40 |
| 1500DP | AC50B-05G-B | NDP-50/H50/P50,80/H80 |
Companion Flange
JIS, DIN, ANSI and FerruleFlanges made of SUS304 or SUS316 or PP

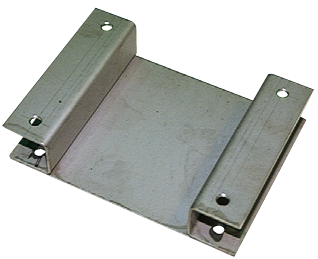

Raised Pump Bracket
JIS, DIN, ANSI and FerruleFlanges made of SUS304 or SUS316 or PP

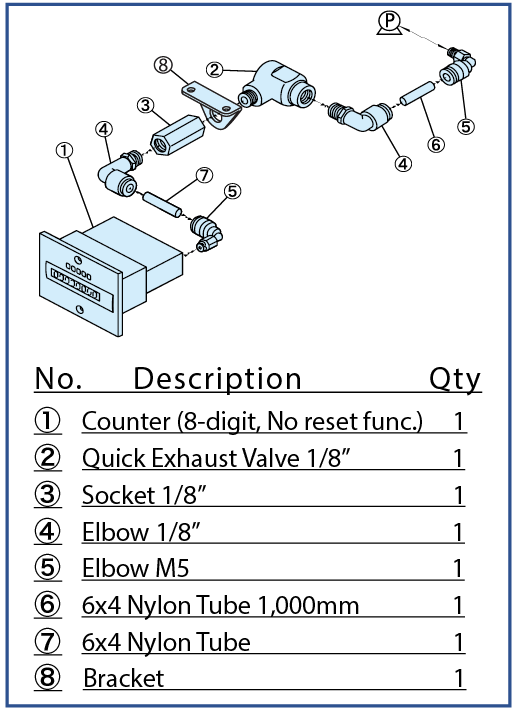

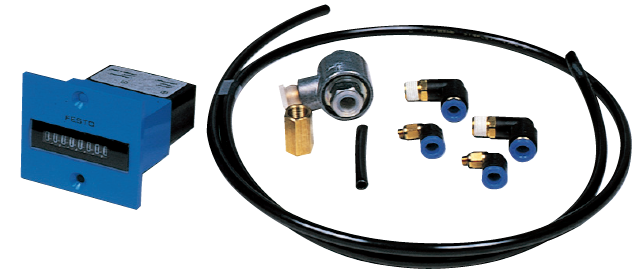

Pneumatic Cycle Counter
Pneumatic 8-digitmechanical type counter
- ・Pump Mounting Bracket is available upon reques
- ・No count up in dry run
- ・No reset function
- ・Modification on the center body is required for installation
| Model No. | Model | Fits Pump |
| 803413 | NMC-ANS | DP-10, NDP-15 〜80 |
| 804847 | NMC-ANH | NDP-H Series |
Dry-Run Detector
The Yamada ESV-06/DRD-100detects increases in air volume due toloss of prime or dry-running, and automatically shuts down the pump to prevent excess cycling and increased diaphragm wear.
| Model No. | Model | Fits Pump | Usable Gas | Air Inlet | Air Outlet |
| 854006 | ESV-06 | 0.2-0.99MP | Air / Nitrogen | Rc3/4" | Rc3/4" |
| 854008 | DRD-100 | NPT3/4" | NPT3/4" |

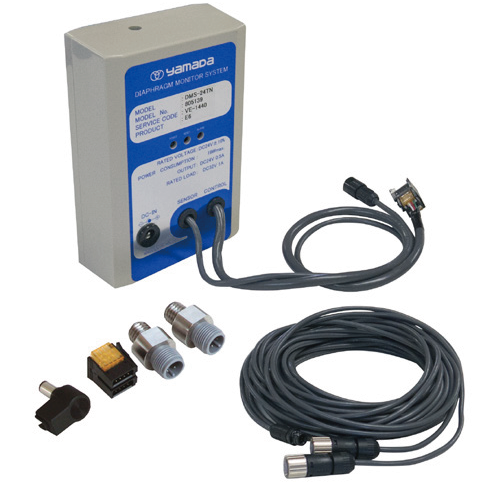

Diaphragm Monitoring Kit
For NDP-40, 50 and 80 series, install the street elbow between muffler and exhaust port.
PT thread:634050, NPT thread: 685716 (Sold separately)
For the DP-F series, install the Sensor Mounting Kit between the sensor and the body.
| Model No. | Model | Fits Pump | Power Supply |
| 805139 | DMS-24TN | Except NDP-5 to15 | DC24V |
| Model No. | Model,Description |
| 685968 | 24V AC Adapter |
| 685969 | Extension sensor cord 5M |
| 685016 | Gasket |
| 771622 | Union |

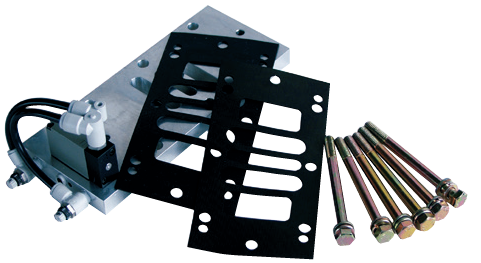

Anti-Stall Device
Retrofit-able kit that pneumatically ac tivates the
air valve instantly starting pump operation
*Please use with dedicated
sleeve
| Model No. | Model | Fits Pump |
| 854006 | SVT-225 | NDP-20,25,32 |
| 854008 | SVT-458 | NDP-40,50,80 |
dedicated sleeve
| Model No. | Model |
| 804739 | Sleeve for SVT225 |
| 804740 | Sleeve for SVT458 |

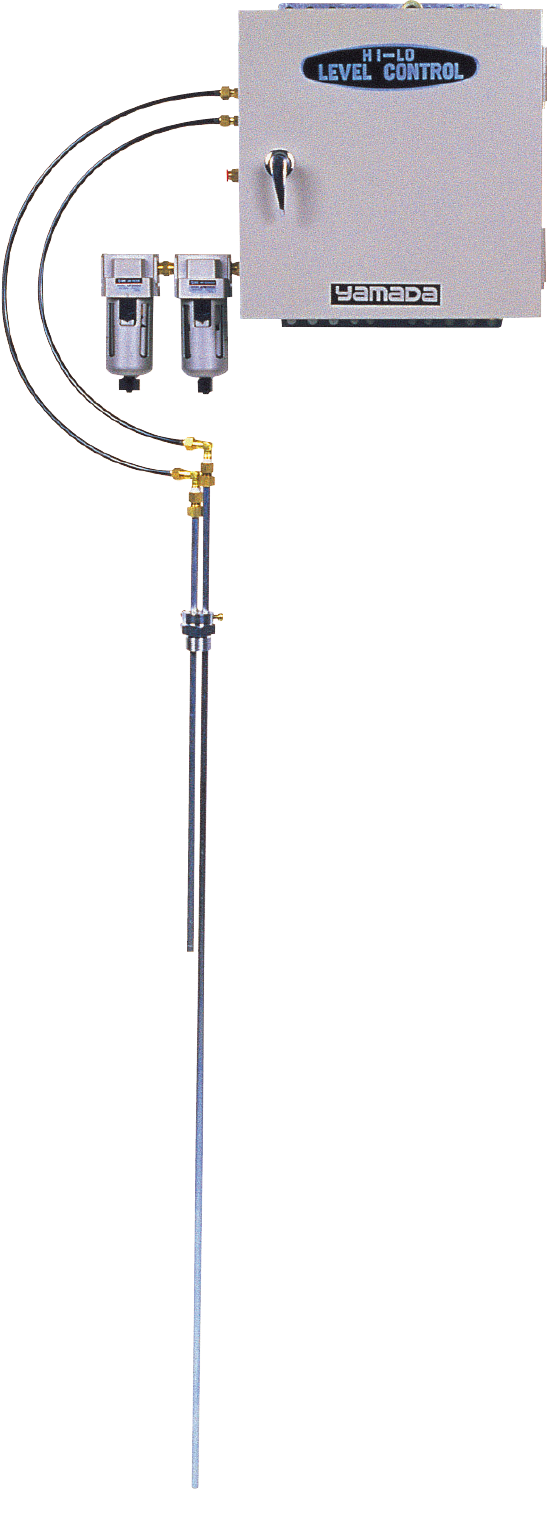

High-Low Level Controller
This unit is used to control the high and low levels of liquid being pumped into or out off acontainer.
This device in driven by compressed air and istherefore suitable for use in highlyexploszive environments.
The systems is alsodesigned to work in many harshenvironments, e.g. areas with high temperature, high humidity or even areas where there are high electromagnetic fields.
It can handle any liquid with a viscosity of less than 1000cps.
| Model No. | Model | Supply Air Press. | Output Air Flow | Viscosity Limit | Weight |
| 480005 | SA-4150 | 0.3-0.7MPa | Max 300L/min | 1Pa·s or less | 6kg |

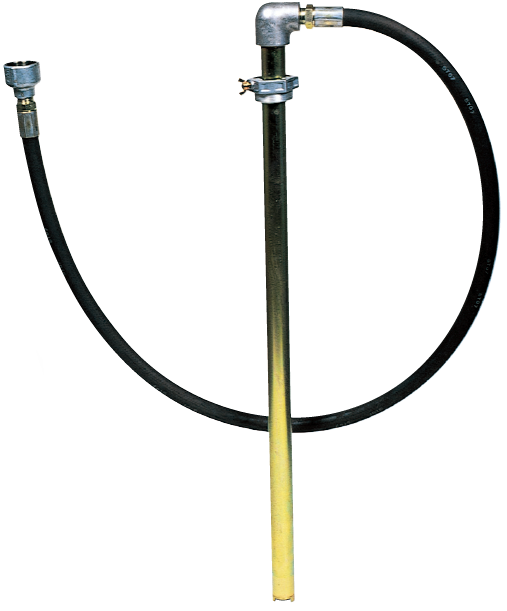

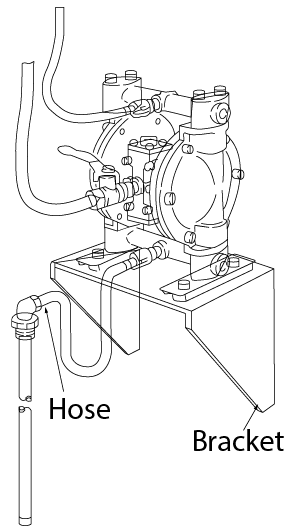

Suction Tube Kit for Drum
The Yamada ESV-06/DRD-100 detects increases in air volume due toloss of prime or dry-running, and automatically shuts down the pump to prevent excess cycling and increased diaphragm wear.
| Material | ModelNo. | Model | Fits Pump | Hose | Connection | Accessories | Remark |
| Carbon stee | 850126 | SCK-200D | Size 20 | Oil hose 3/4"x2M | R3/4" with Rc1-1/2" socket |
Drum bung adapter (ADC12) | Please prepare suitable connectorseparately. |
| 851004 | SCK-200D-HV | Size 25,40 | Oil hose 1"x2M | R1"with Rc1-1/2" socket | Drum bung dapter (ADC12) | ||
| SUS 304 |
803407 | STU-20-20 | Size20 | Not included |
Rc3/4" | Drum bung adapter(SUS304) | Please preparesuitable hose andconnector separately. |
| 803405 | STU-25-25 | Size25 | Rc1" | ||||
| 803406 | STU-40-40 | Size 40 | Rc1-1/2" |
